CNC Oscillating Knife Cutting Machine for PU Foam

The DXOVO CNC oscillating knife cutting machine cuts flexible polyurethane foam sheets into components for furniture, upholstery, cushioning and protective packaging. It combines CNC motion control with a reciprocating cutting blade to produce external profiles and internal cutouts directly from digital drawings.

Designed for manufacturers processing multiple shapes and changing order quantities, the machine replaces repeated manual tracing with a file-based cutting process. Approved designs can be stored, revised and recalled for subsequent production.

Controlled Blade Cutting for Flexible Polyurethane Foam

PU foam presents a different cutting challenge from rigid sheet materials. Its cellular structure compresses under load, and the finished dimensions depend on how the material behaves both during cutting and after it recovers.

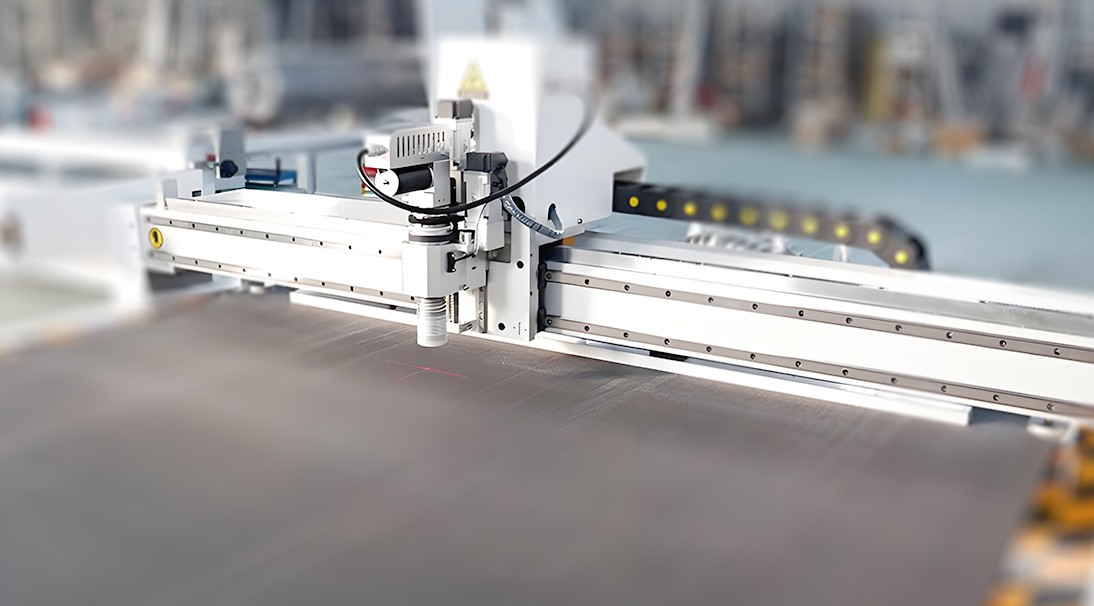

The oscillating knife cuts through the foam with a reciprocating blade while the CNC system controls its path across the sheet. Cutting performance depends on the relationship between blade geometry, blade condition, feed settings and material support.

Material Stability and Edge Quality

Movement or excessive compression during cutting can affect the finished contour. The cutting setup must support the foam while allowing the blade to pass through the required thickness.

This is particularly important around narrow sections, internal openings and closely spaced features. A stable sheet and a suitable blade reduce the need for corrective trimming after the part leaves the cutting table.

Consistency Across Repeat Parts

The digital drawing establishes the nominal geometry for every component in the job. Reusing the same file removes the variation introduced by repeatedly drawing an outline or working from a worn physical template.

Production checks still account for foam density, firmness, thickness and recovery. These properties influence the cutting response and should remain part of the material specification for repeat orders.

From CAD Drawing to Finished Foam Component

The production workflow begins with the part outline. The operator prepares the design, arranges the required components within the sheet layout and transfers the job to the cutting system.

After positioning the foam and confirming the cutting setup, the operator starts the programmed job. Completed parts are removed and checked against the drawing.

Faster Design Revisions

A dimensional change is made in the digital design rather than by manufacturing another cutting template. This simplifies the transition between an initial sample, a revised component and the approved production version.

For manufacturers handling custom orders, the same process supports different outlines without requiring a dedicated cutting die for each design.

Better Control of Recurring Jobs

Stored files provide a consistent reference for part identification and repeat production. Linking the approved drawing with its material specification and cutting setup helps operators reproduce the job with fewer preparation steps.

DXOVO software supports a design-to-cutting workflow with AI, CAD, CorelDRAW and box-design software, together with automatic optimization functions for job preparation.

Foam Cutting Applications

Furniture and Upholstery Components

The machine processes flat PU foam components used in upholstered furniture and related assemblies. Digital cutting is useful where manufacturers manage multiple component sizes, product variants and frequent design updates.

The drawing defines the required profile, while the cutting setup addresses the behavior of the selected foam grade.

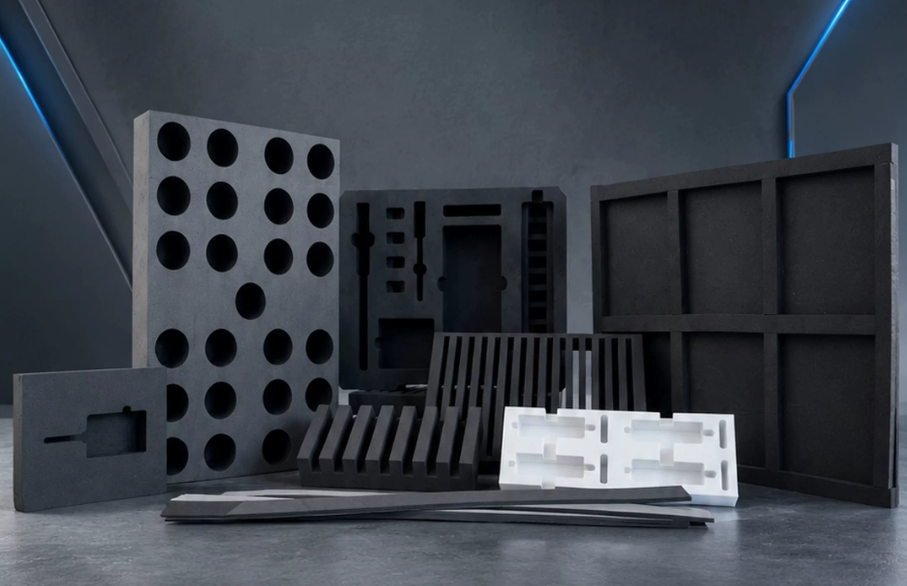

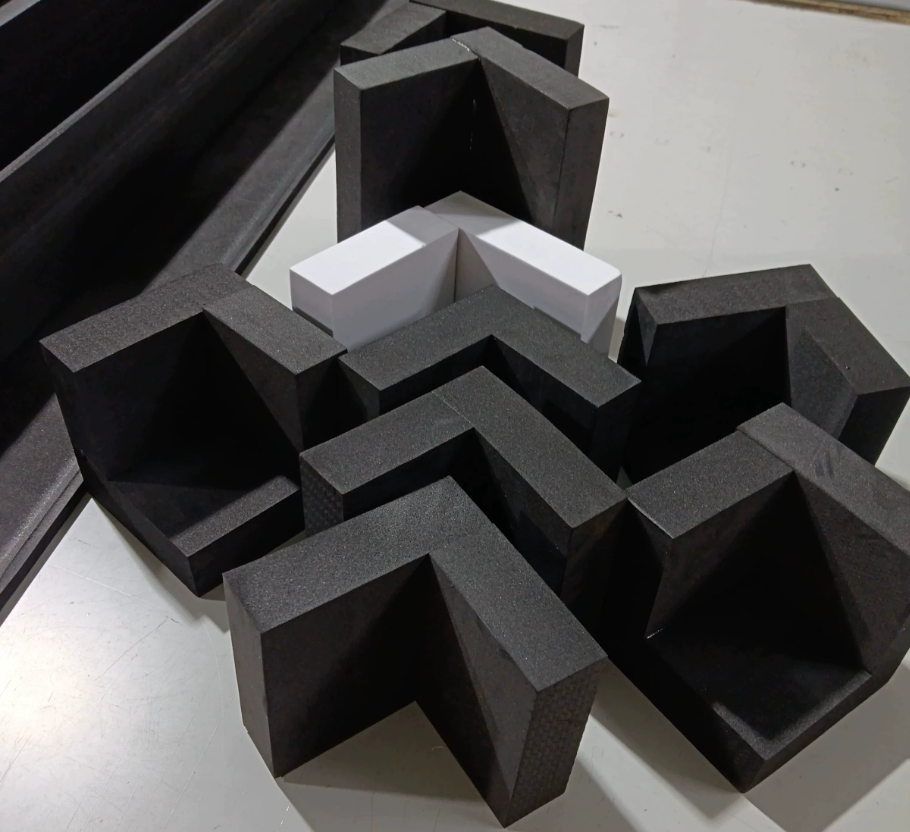

Cushioning and Protective Packaging

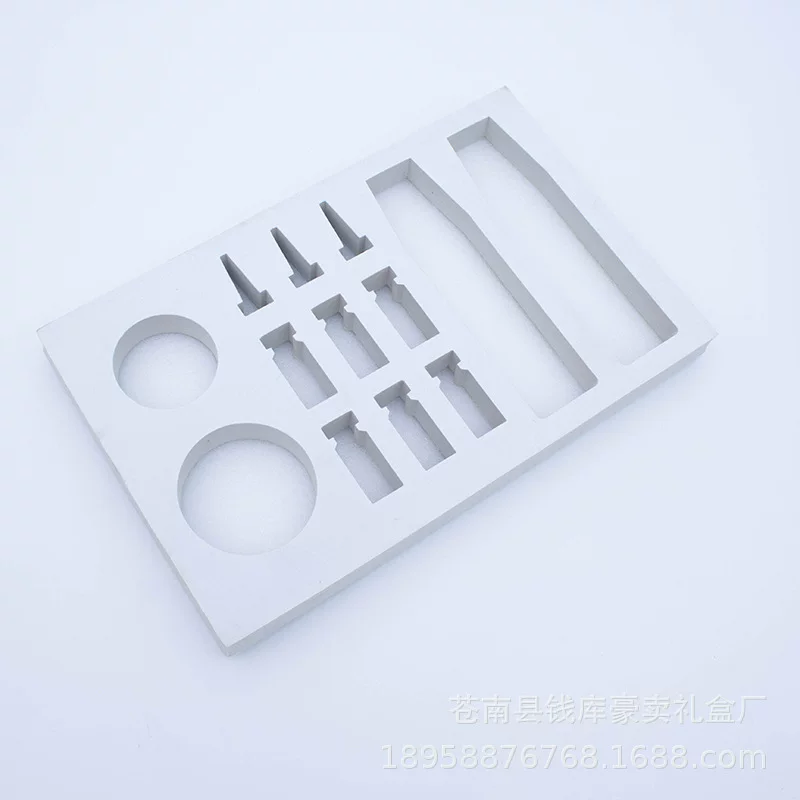

Custom cushioning parts require a defined external shape and internal openings that correspond to the protected product. CNC cutting translates these outlines into a repeatable production file.

This is suited to packaging development and repeat orders where the approved geometry must remain consistent across production batches.

Product Development and Short Runs

During development, a foam component may go through several dimensional revisions before approval. File-based cutting allows the geometry to be updated without repeating the physical template-making process.

The same equipment can then use the approved design for subsequent orders.

Working Area, Tooling and Production Layout

The machine configuration is selected around the foam sheet format, part geometry and production workload.

The working area determines the sheet size that can be processed in one setup. Tooling must provide the blade reach and cutting characteristics required for the material. The surrounding workspace must accommodate sheet loading, finished-part removal and access for routine maintenance.

For production planning, the complete cycle matters: file preparation, material handling, cutting, unloading and inspection. A cutting-speed figure alone does not establish the number of acceptable parts produced per hour.

DXOVO also offers OEM customization and custom machine body colors for distributor and branding requirements.

Operating Costs and Production Value

The main production benefit is the removal of repeated manual marking and template-guided cutting steps. Digital files also make revisions and repeat orders easier to manage.

The financial value should be measured against the existing process. Relevant factors include preparation time, operator involvement, material consumption, trimming, rejected components and the number of design changes handled each month.

Routine running costs include replacement blades, cutting-table consumables, electricity and maintenance. Blade inspection and replacement are part of maintaining the finished edge and controlling unnecessary material waste.

Remote Technical Support

DXOVO provides online remote technical support for machine operation, software use and troubleshooting.

For an operating issue, the technical team can review the material, cutting settings and machine behavior with the operator. Clear photographs or video of the cutting process help identify whether the issue relates to setup, tooling, material handling or machine operation.

Request a PU Foam Cutting Machine Quotation

Provide your foam grade, thickness, density, sheet size and representative part drawings. DXOVO will prepare a machine configuration and quotation around the components you manufacture and the workflow required to produce them.
